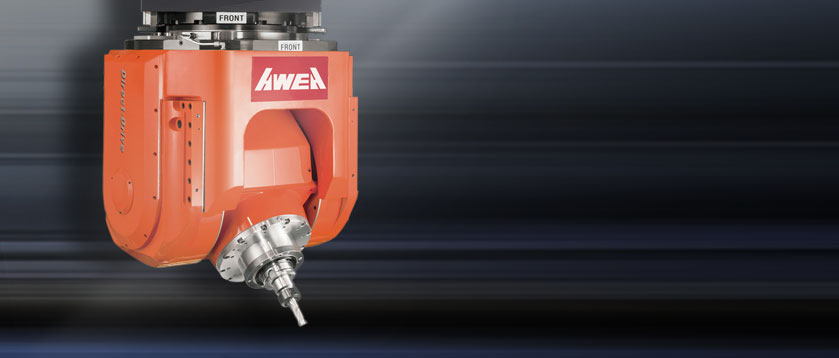

MEGA5 Series

X-axis travel : 3,000 ~ 8,000 mm ( 118.1" ~ 315.0" )

Y-axis travel : 3,200 / 3,700 mm ( 125.9" / 145.6" )

( Vertical )

Y-axis travel : 2,500 / 3,000 mm ( 98.4" / 118.1" )

( Horizontal )

Z-axis travel : 1,000 mm ( 39.3" )

Max. table load : 12,000 ~ 20,000 kg

( 26,455 ~ 44,092 lb )

Spindle taper : HSK-A100

Spindle motor : 50 / 40 kW ( 66 / 53 HP )

( 30 min / Cont. )

X-axis rapid feedrate : 10 ~ 20 m/min. ( 393 ~ 787 IPM )

Y-axis rapid feedrate : 15 m/min. ( 590 IPM )

Z-axis rapid feedrate : 10 m/min. ( 393 IPM )
