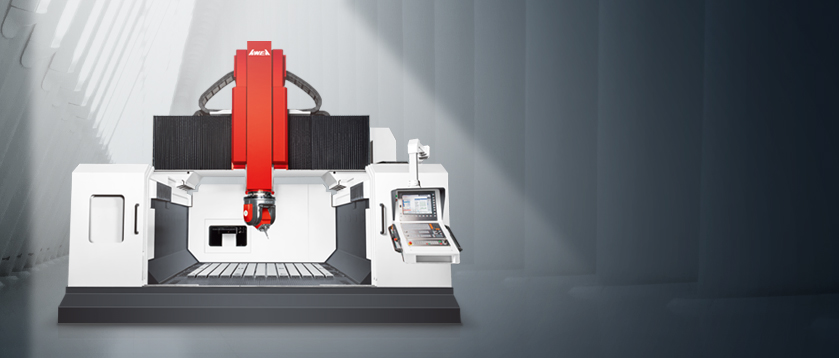

RG5 series

X-axis travel : 1,600 / 3,200 mm

Y-axis travel : 2,500 mm

Z-axis travel : 1,000 mm

Dist. between columns : 3,500 ( 3,300 ) mm
( with water eliminator )

Table load capacity : 2,500 kg/cm²

Spindle taper : TCH-20F : HSK-A63 ;
TCH-20F-A : HSK-A100

Spindle motor : TCH-20F : 42 / 55 kW ;
( S1 / S6 40%)    TCH-20F-A : 50 / 65 kW

X-axis rapid feed rate24 / 20 m/min.

Y / Z axes rapid feed rate : 24 m/min.
