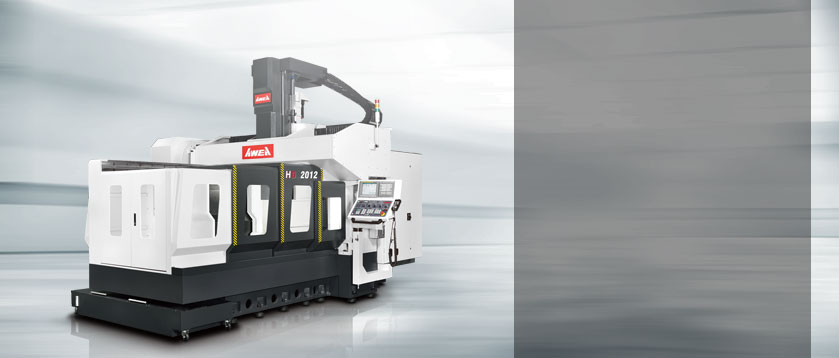

HD series

X-axis travel : 2,000 / 3,000 mm

Y-axis travel : 1,200 mm

Z-axis travel : 760 mm

Distance between columns : 1,300 mm

Table load capacity : 4,500 / 5,500 kg

Spindle speed : 6,000 rpm

Spindle motor ( cont. / 30 min. ) : 22 / 26 kW

Spindle taper : BT50

X-axis rapid feed rate : 20 / 24 m/min.

Y-axis rapid feed rate : 24 m/min.

Z-axis rapid feed rate : 15 m/min.

Tool magazine capacity : 30 T ( Opt. 40 T )
