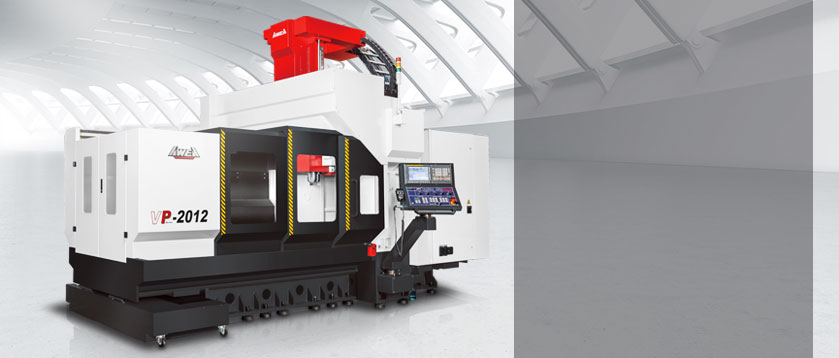

VP series

X-axis travel : 1,600 mm ~ 6,000 mm

Y-axis travel : 1,200 mm

Z-axis travel : 760 mm

Dist. between columns : 1,300 mm

Table load capacity : 3,500 ~ 8,000 kg

Spindle speed : Gear Spindle 6,000 rpm /

Direct drive spindle 10,000 rpm

Spindle power ( cont. / 30 min. ) : 11/15 kW

22 / 26 kW

Spindle taper : BT50 / BBT50

X-axis rapid feedrate : 40 / 24 / 20 / 10 / 8 m/min.

Y-axis rapid feedrate : 24 m/min.

Z-axis rapid feedrate : 20 m/min.

Tool magazine capacity : 32T ( Opt. 24T / 40T )
