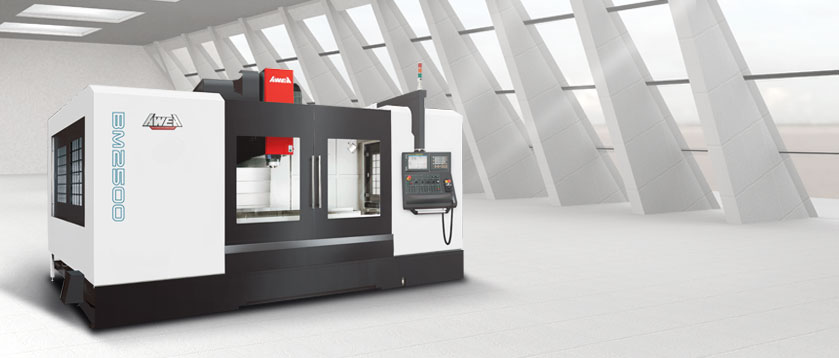

BM Series

X Travel : 850 ~ 2,500 mm ( 33.5" ~ 98.4" )

Y Travel : 600 ~ 1,000 mm ( 23.6" ~ 39.4" )

Z Travel : 600 ~ 1,000 mm ( 23.6" ~ 39.4" )

Spindle nose to table : 125 ~ 1,200 mm ( 4.9" ~ 47.2" )

Spindle Taper : BT 40 / BT 50

Spindle Speed : Belt Driven 6,000 / 8,000 rpm

2-speed gear head 6,000 rpm

Spindle Motor ( cont. / 30 min. ) :

7.5 / 11 ~ 15 / 18 kW ( 10 / 15 ~ 20 / 25 HP )

Rapids X / Y / Z :

24 / 24 / 20 m / min. ; 20 / 20 / 18 m / min.

( 945 / 945 / 787 IPM ; 787 / 787 / 709 IPM )

Machine Weight : 6,500 ~22,000 kg

( 14,330 ~ 48,500 Lb. )
