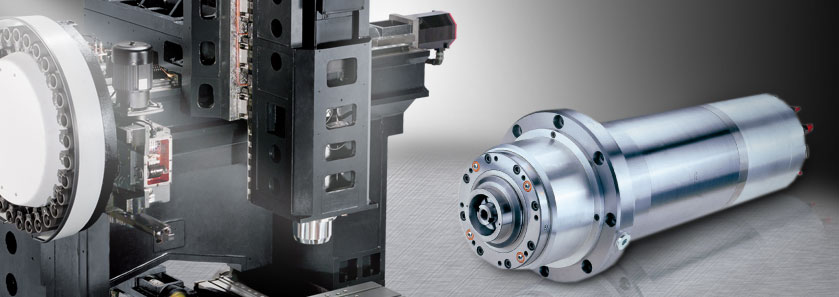

BUILT - IN SPINDLE

Item Code Spindle Speed
( Max. )		 Power
( Max. )		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 A22 22,000 rpm 35 kW 60 N-m Short Nose HSK-A63 Oil-Air TDM, Swiss F-16
F-101
2 A21 21,000 rpm 24 kW 24 N-m Short Nose HSK-E50 Grease TDM, Swiss F-7
3 A30 30,000 24 kW 24 N-m Short Nose HSK-E50 Oil-Air TDM, Swiss F-7
【Table】Power & Torque of A22 ( 22,000 rpm )

HIGH SPEED - SPINDLE

Built-in Spindle
Item Code Spindle Speed
( Max. )		 Power
( Max. )		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 M15 15,000 rpm 22 kW 167 N-m BT 40 Grease FANUC , Japan F-87
F-16
F-101
2 M20 20,000 rpm 18.5 kW 95 N-m Short Nose HSK A63 Oil-Air FANUC , Japan F-87
F-16
F-101

Direct-Drive Spindle
Item Code Spindle Speed
( Max. )		 Power
( Max. )		 Torque
( Max. )		 Spindle Taper Lubrication Motor Brand Model
1 B12 12,000 rpm 18.5 kW 118 N-m BT 40 Grease FANUC , Japan F-16
F-101
2 B15 15,000 rpm 22 kW 150 N-m BT 40 Grease FANUC , Japan F-16
F-101
