The saddle fixture provides additional support to prevent saddle deformation during heavy cutting.
The linear guideway is equipped with a built-in high resolution magnetic encoder for ensuring accurate positioning.
The newly designed U-shaped saddle is cast in one piece with strong ribbing to provide low weight, highly rigid support for the headstock that easily outperforms traditional designs.

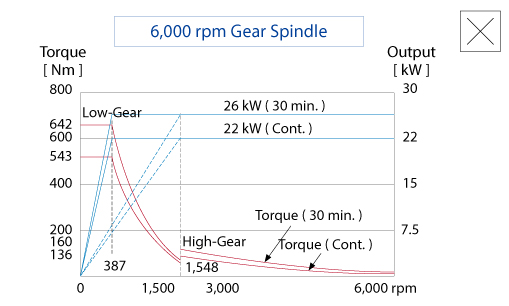

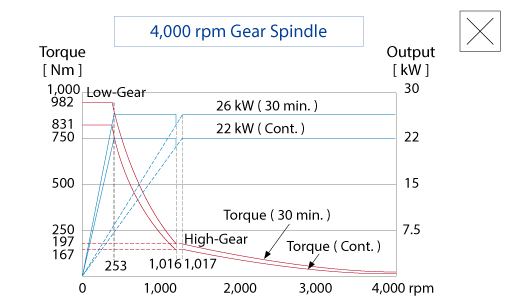

The gear head spindle is equipped with a newly designed short, highly rigid transmission shaft, enabling efficient power transmission suitable for heavy cutting.
The BBT dual contact spindle ensures the spindle taper and face maintain contact with the tool holder to better meet the needs of heavy cutting.
There are two highly rigid roller type linear guideways on both sides of the headstock. They ensure the machine can still maintain excellent machining accuracy even when the Z-axis is fully extended.
