Optimum Spindle SystemY-Axis Guide Ways Design

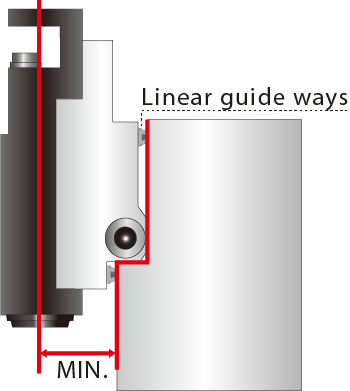

The stepped offset design of the Y-axis guide ways increases the structural integrity and reduces the distance between the spindle center and the cross beam, which further enhances overall rigidity and cutting performance.

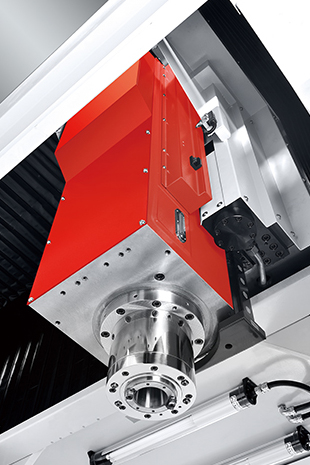

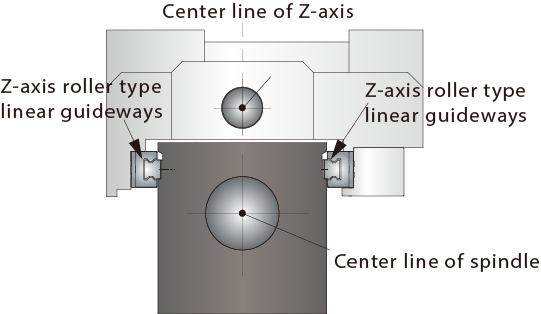

Centro-Symmetric Spindle Head Design
Unique spindle head design, with the main spindle, spindle motor, and ball screw all symmetrically placed to preventing distortion and minimizing deflection, thereby ensuring accuracy and heavy cutting capability.

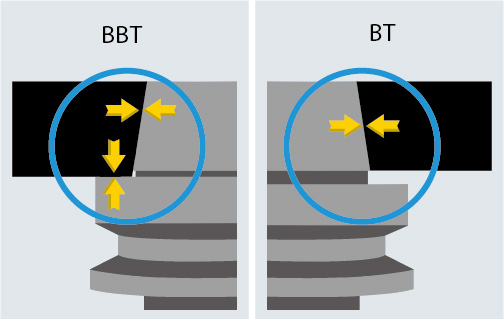

BBT Type Spindle Taper
The VP-HS series are equipped with a BBT Dual Contact Spindle to meet the needs of long time high speed cutting accuracy. The BBT Dual Contact Spindle ensures both taper and face of the tool holder and spindle are securely coupled to maintain high speed cutting rigidity.
- Increases machining accuracy and reliability
- Improves the roundness when boring and drilling
- Ensures tool change accuracy
- Extends tool life
Long Nose Spindle
The optional long nose spindle combined with a shorter tool will increase rigidity and accuracy significantly. Recommended for groove milling and boring.
