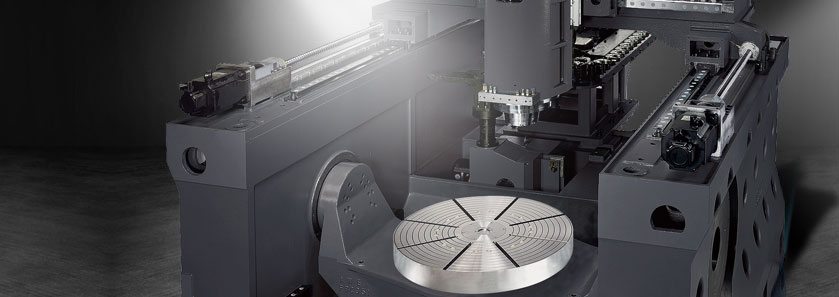

CNC 5-Axis Gantry Type Machining Center FCV-800 construction close-up

Super Rigidity Structure

Super rigidity gantry type structure and advanced core components achieve high efficiency and high accuracy machining capacity.

X-axis adopts AWEA "simultaneous-controlled technology" which greatly reduces accuracy error caused by both sides of ball screws.
One-piece U-shaped high rigidity base adopts FC300 MEEHANITE casting, which is stronger than competitor's 3-piece structure.
Minimal spindle overhang design can prevent deformation of overhang to ensure cutting rigidity and stable accuracy.
X / Y / Z axes adopt heavy-duty roller type linear guide ways design, which provide integration of heavy cutting ability from box way and fast movement ability from linear guide way.
X / Y / Z axes are driven by superior Heidenhain QSY absolute servo motor, provides faster acceleration / deceleration and powerful thrust.

High Performance Trunnion Table


A-axis is driven by high class servo motor that provides the max. torque 12,600 N-m.
Brake system adopts servo motor with stacked disk spring design to provide stable and reliable performance. Even when the power is cut off suddenly, table can still hold at current position thus greatly improves the safety.


C-axis is driven by direct drive motor ( DDM ), which motion can be delivered 100% from motor to provide high speed, high torque and zero backlash.
Outer diameter of slew bearing is increased 35% compared to the last generation, and rigidity of C-axis is improved 70%.
Brake system adopts specialized mechanical design with ample braking force.
The Finite Element Method
( FEA )
3D CAD Design
