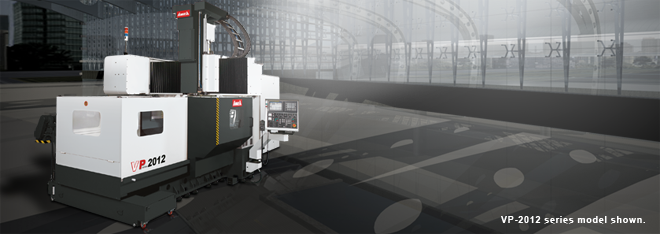

CNC Bridge Type Vertical Machining Center VP-2012 series model shown Printer

VP-HS Series Bridge Type Machining Center :

Print this page VP-1612HS VP-2012HS VP-3012HS VP-4012HS VP-5012HS
CAPACITY
X-axis travel 1,600 mm 2,000 mm 3,000 mm 4,000 mm 5,000 mm
Y-axis travel 1,200 mm
Z-axis travel 760 mm
Dist. form spindle nose to table top 200 ~ 960 mm
Dist. between columns 1,300 mm
WORKING TABLE
Table size ( X direction ) 1,600 mm 2,000 mm 3,000 mm 4,000 mm 5,000 mm
Table size ( Y direction ) 1,100 mm
Table load capacity 3,000 kg 3,500 kg 4,500 kg 6,000 kg 8,000 kg
SPINDLE
Spindle taper BBT50 ( Opt. BBT40 )
Spindle power ( cont. / 30 min. ) 22 / 26 kW
Spindle speed Direct-driven spindle 10,000 rpm
FEED RATE
X-axis rapid feed rate 24 m/min. 20 m/min. 10 m/min. 8 m/min.
Y-axis rapid feed rate 24 m/min.
Z-axis rapid feed rate 20 m/min.
Cutting feed rate 12 m/min. 10 m/min. 8 m/min.
TOOL MAGAZINE
Tool magazine capacity 32 T ( Opt. 24 / 40 T )
Max. tool diameter / adj. pocket empty Ø 125 / Ø 229 mm
Max. tool length ( from gauge line ) 350 mm
Max. tool weight 15 kg
ACCURACY
Positioning accuracy ( JIS B 6338 ) ± 0.010 mm / Full Travel
Positioning accuracy ( VDI 3441 ) P ≤ 0.02 mm / Full Travel P ≤ 0.03 mm / Full Travel P ≤ 0.04 mm / Full Travel
Repeatability ( JIS B 6338 ) ± 0.003 mm
Repeatability ( VDI 3441 ) Ps ≤ 0.015 mm Ps ≤ 0.02 mm Ps ≤ 0.03 mm
GENERAL
Power requirement AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA
Pneumatic pressure requirement ( min. ) 5 ~ 7 kg / cm²
Lubrication oil tank capacity 4.5 liter
Hydraulic unit tank capacity ( pump ) 400 liter ( 1 HP )
Machine weight 14,000 kg 16,000 kg 20,000 kg 24,000 kg 28,000 kg

Specifications are subject to change without notice.
