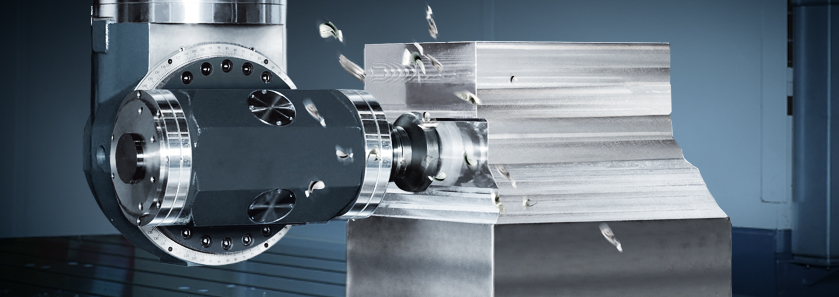

CNC Bridge Type 5-Face Machining Center Head Close-Up

5-FACE BRIDGE MILLING

CNC ? Machining Center McP Series MCP Series / Moving Column Bridge Type Multi-face
Machining Centers X-axis travel : 8,000 ~ 20,000 mm
Y-axis travel : 4,400 / 5,400 / 6,400 mm
Z-axis travel : 1,400 ( 1,600 opt. ) mm
Spindle taper : BBT 50
Spindle speed ( Vertical ) : 4,000 Gear Spindle (Std.)；
5,000 / 6,000 Gear Spindle (Opt.)；8,000 / 12,000 Built-in Spindle (Opt.)
Spindle motor ( cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Tool magazine capacity : 40 (60 Opt.) T
Detail Info.
Specification
CNC Bridge Type Moving Cross Rail 5-Face Machining Center MVP Series MVP Series / Bridge Type Moving Cross Rail 5-Face
Machining Center X-axis travel : 4,000 ~ 8,000 mm
Y-axis travel : 3,200 ~ 4,000 mm
Z-axis travel : 1,000 ( 1,200 / 1,400 opt. ) mm
Spindle taper : BT 50
Spindle speed : 4,000 rpm ( vertical ) ; 3,000 rpm ( horizontal )
Spindle motor ( cont. / 30 min. ) : 22 / 26 kW
Tool magazine capacity : 60 T
Detail Info.
Specification
CNC Bridge Type 5-Face Machining Center HVM Series HVM Series / Bridge Type 5-Face Machining Center X-axis travel : 3,060 ~ 7,000 mm
Y-axis travel : 2,500 ~ 4,500 mm
Z-axis travel : 1,000 mm
Dist. between columns : 1,800 ~ 3,300 mm
Table load capacity : 10,000 ~ 20,000 kg
Spindle speed : 4,000 rpm ( V ), 2,400 rpm ( H )
Spindle motor ( cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Specification
CNC Cross Rail Bridge Type 5-Face Machining Center MVP Series LP-F Series / Bridge Type 5-Face Machining Center X-axis travel : 3,000 ~ 7,000mm
Y-axis travel : 3,000 ~ 7,000 mm
Z-axis travel : 760 mm ( 1,000 / 1,200 / 1,400 mm Opt. )
Spindle taper : BT 50
Spindle speed : 10 ~ 4,000 rpm
Spindle motor ( cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Tool magazine capacity : 32 ( 60 / 90 / 120 Opt. )
Detail Info.
Specifications
CNC Gantry Bridge Machining Center LG Series LG Series / Gantry Type 5-Face Machining Center X-axis travel : 4,000 ~ 20,000 mm
Y-axis travel : 3,000 ~ 7,000 mm
Z-axis travel : 1,000 mm
Dist. between columns : 3,800 ~ 7,800 mm
Spindle speed : 4,000 rpm Gear Spindle ( Std. ), 5,000 / 6,000 rpm Gear Spindle ( Opt. ),
6,000 / 8,000 rpm Bulit-in Spindle ( Opt. )
Spindle motor ( cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Tool magazine capacity : 32 T ( 60 T Opt.)

Detail Info.
Specifications
