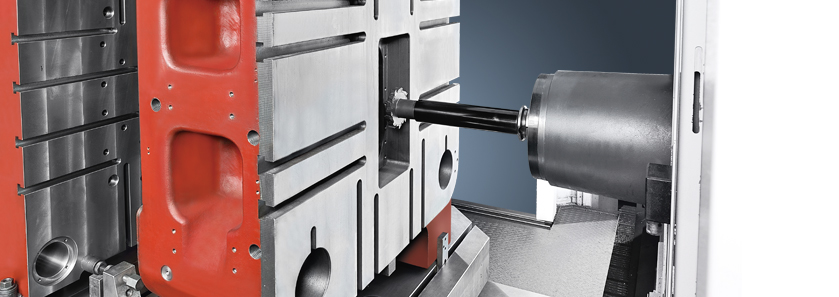

CNC Horizontal Boring Milling Center Close-up

HORIZONTAL BORING MILL

CNC Horizontal Boring Milling Center BL Series BL Series / CNC Horizontal Boring Milling Center X Travel : 2,000 / 3,000 / 4,000 mm
Y / Z / W Travel : 1,800 / 1,300 / 600 mm
Table Size / Load : 1,600 x 1,800 mm / 12,000 kg
Boring Spindle Size : Quill with Ø 120 mm / Ram 480 x 470 mm
Spindle Speed : 2 Steps geared spindle 2,400 rpm
Spindle Motor ( Cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Tool Magazine Capacity : 40 T
Specification
MB Series / High Precision Horizontal Boring Mills MB Series / High Precision Horizontal Boring Mills X Travel : 1,500 mm
Y / Z / W Travel : 1,200 / 900 / 500 mm
Table Size / Load : 1,250 x 1,150 mm / 4,000 kg
Boring Spindle Size : Ø 110 mm
Spindle Speed : 3,200 rpm
Spindle motor ( Cont. / 30 min. ) : 22 / 26 kW ( 30 / 35 HP )
Tool Magazine Capacity : 40 T
Detail Info
Specifications
