High Speed ATC System
All series are standard with 24T arm type ATC system which can easily fulfill various types of processing needs.
Standard shortcut tool change function can shorten tool change time and increase working efficiency.
The tool magazine is supported by the column base, which increases stability and lowers the tool change vibration, while ensuring its precision ( AF-1250 ~ AF-1800 ).
24T Disc type tool magazine
High Effeciency Chip Disposal System
All series are equipped with screw type chip conveyor. Single screw or triple screws type chip conveyors are adopted according to different models.
The optional high pressure chips flush coolant system is also available.

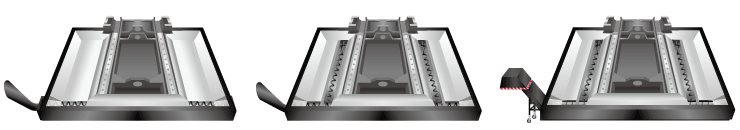

Single screw chip conveyor
Triple screws chip conveyor
Chain type chip conveyor ( Opt. )

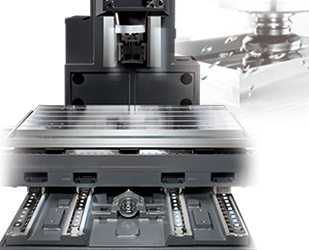

Optional Compound Guide Ways
Fulfilling Your High Speed And Heavy Cutting Needs
Z-axis could adopt with heat treated box way structure with gear box spindle. Very suitable for heavy cutting requirements.
Three axes compound structure design provide both benefits of heavy cutting capacity on Z-axis box way plus fast moving high accuracy features of linear guide ways on X and Y axes.
Optional APC System
Fulfilling Your Mass Production Needs
The high-quality, world famous Japanese auto parts machining plants, is recently installed with AWEA APC Series for processing of automotive intake manifold, gear box shell and other key components. Because of the AWEA machine high quality and high reliability performance, the installation quantity is continued to grow up.
|Auto pallet changing time|
|Repeatability between two tables|
Table rotating range
Table load capacity
|X / Y / Z axes travel||850 / 600 / 600 mm|
|Table size||460 x 800 mm|
|Table rotating range||180˚|
|Repeatability for each table||0.01 mm|
|Repeatability between two tables||0.02 mm|
|Table load capacity||200 kg|
|Spindle taper||BT40 / BT50 ( Opt. )|
|Spindle motor ( cont. / 30 min. )||7.5 / 11 kW|
|Spindle speed||8,000 rpm|
|X / Y / Z axes rapid feed rate||48 / 48 / 32 m/min.|
|Cutting feed rate||10 m/min.|
|Tool magazine capacity||24 T|
