High Efficiency Belt-drive Spindle

The high efficiency belt-drive spindle provides 8,000 rpm or 10,000 rpm spindle speed which depends on machining requirements.
The spindle is equipped with FANUC α8i motor which provides maximum output of 11 kW.
All series are standard with spindle oil cooler system to prevent thermal expansion effects and thermal deformation.
The contact surfaces between headstock and spindle are all precisely hand scraped to ensure optimal performance and precision.
BELT-DRIVE SPINDLE OUTPUT [+]

High Torque Gear Spindle

2-speed super heavy-duty gear box.( Gear spindle are all equipped with box way Z-axis. )
Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.
8,000 rpm high torque spindle ( BT40 ) is equipped with powerful 11 kW motor delivers maximum torque output of 280 N-m at 375 rpm to meet various working conditions.
6,000 rpm high torque spindle ( BT50 ) is equipped with powerful 15 kW motor delivers maximum torque output of 382 N-m at 375 rpm.
GEAR SPINDLE OUTPUT [+]
FANUC α12i / α15i motor are available.
FANUC α15i / α18i motor are available.

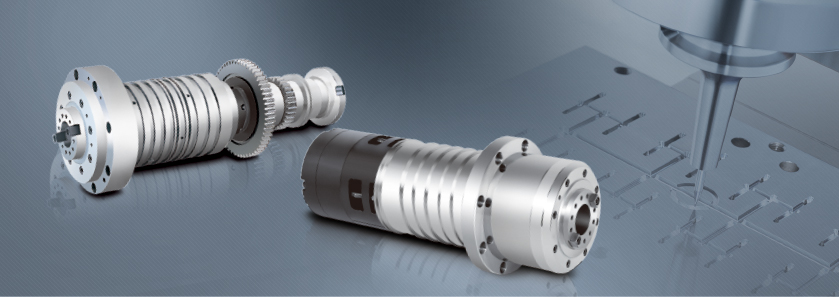

High Speed, High Power Direct Drive Spindle

Direct drive spindle efficiently separates the heat generated from the motor, which reduces deformation, therefore increasing machining accuracy.
Floating type hydraulic tool release device eliminates pressure on the spindle bearing when releasing a tool.
Several options of spindle heads and speed are available to fulfill various high speed machining requirments.
BT40 / DIRECT-DRIVE SPINDLE OUTPUT [+]
FANUC α12i motor is also available.
FANUC α12i / α15i motor are available.
[+]
FANUC α15i motor is also available.

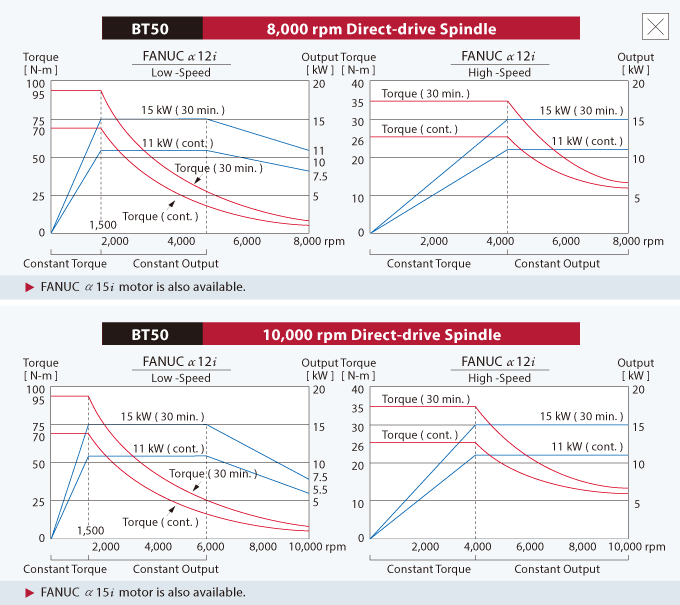

BT50 / DIRECT-DRIVE SPINDLE OUTPUT [+]
FANUC α15i motor is also available.
FANUC α15i motor is also available.
