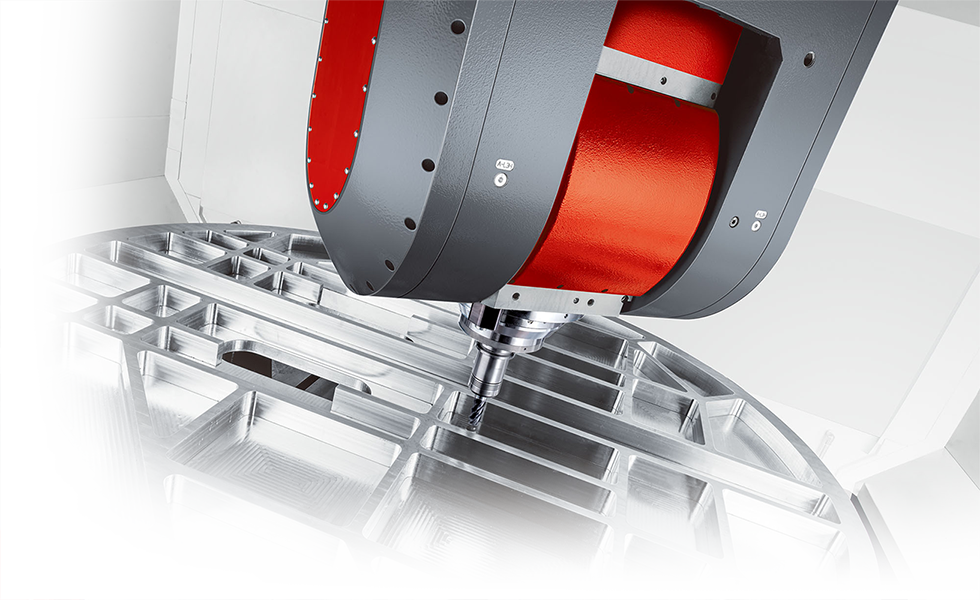

5-Axis Machining Center
- With advanced technology, AWEA 5-axis machining center offers high speed, high accuracy, easy operation and many other superior capabilities.
- 5-axis machining centers provide the best cost-performance than any other same class machines in the field.
- Complicated parts can be done in a single setup that especially suits automobile, aerospace, medical and other industries that demand high accuracy.
- Guided by Finite Element Analysis and utilizing high tension Meehanite casting structure allow one-piece bed, column and saddle to reach optimal design. Mechanical strength of machine can sustain extremely heavy cutting while maintaining long-term excellent accuracy.
Introduction of Model

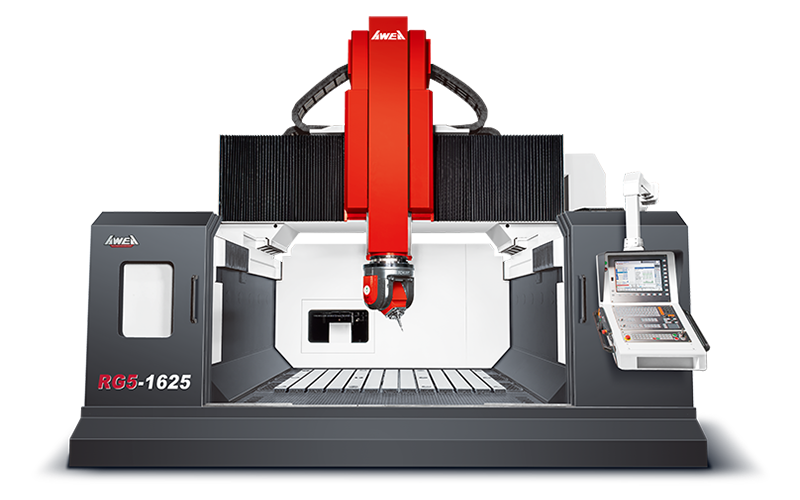

RG5-1625
Gantry type 5-Axis Machining Center
- X-axis travel : 1,600 mm
- Y-axis travel : 2,500 mm
- Z-axis travel : 1,000 mm
- B-axis rotary range : ± 100°
- C-axis rotary range : ± 240°
- Table size : 1,600 x 2,500 mm
- Table load capacity : 2,500 kg/m2
- Spindle taper : HSK-A63
- Spindle speed : Built-in 24,000 rpm
- X / Y / Z feed rate : 24 m/min.
- Cutting feed rate : 20 m/min.
Standard Accessories
- Spindle cooling system
- Dual direct drive servo motors on Z-axis
- X / Y / Z axes with optical linear scales
- ATC with 24 tools magazine
- Centralized automatic lubrication system
- Spindle oil-air lubricant collecting device
- Hydraulic system
- Pneumatic system
( exclude external air supply and hose )
- Coolant system with pump and tank
- Full splash guard w/o roof
- Twin screw type chip auger
- Caterpillar type chip conveyor and bucket
- Electric cabinet with air conditioner
- Swing type control panel
- Foot switch for tool release
- Status signal lamp
- Automatic power-off system

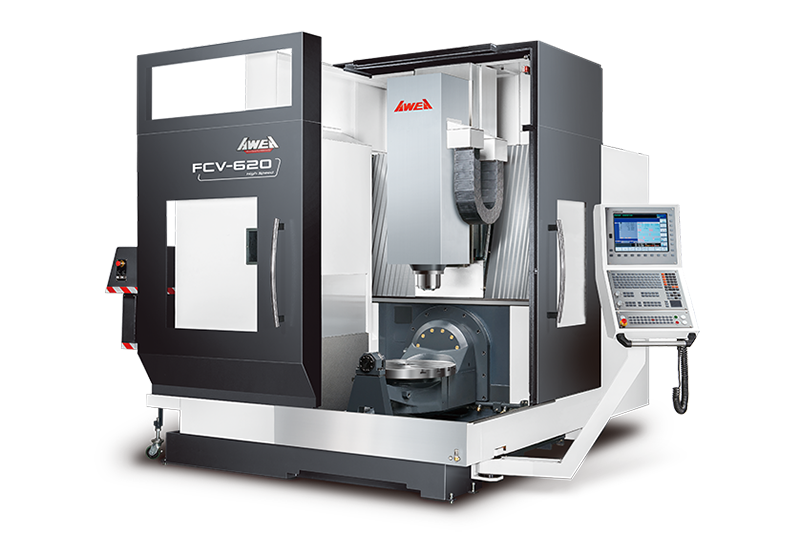

FCV-620H
High Speed 5-Axis Machining Center
- X-axis travel : 635 mm
- Y-axis travel : 535 mm
- Z-axis travel : 460 mm
- B–axis swiveling range : -50° ~ +110°
- C–axis swiveling range : 360˚
- Distance from spindle nose to table top :
350 ~ 810 mm - Table size : Ø 650 mm
- Spindle taper : BBT40
- Spindle speed : Direct drive 12,000 rpm
- Spindle motor ( cont./ 30 min ) : 11 / 15 kW
- X/Y/Z rapid feed rate : 36 m/min.
- Tool magazine : 32 T
Standard Accessories
- B / C axes rotary encoder
- Spindle cooling system
- Spindle air curtain
- Coolant nozzle around spindle
- Chips wash down
- Centralized automatic lubricating system
- Chain type 32 T tool magazine
- Coolant equipment system
( Pump & tank ) - Caterpillar type chip conveyor and bucket
- Roof enclosed splash guard
- AC cooler for electrical cabinet
- Water gun and air gun for cleaning
- LED work light + LED tube
- Standard RS-232 transmission interface
+ network interface card ( NIC ) - Tool box and anchor bolts
- Operation manual + maintenance guide
- Alarm light
